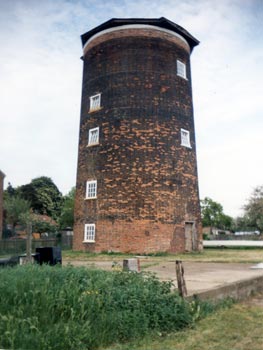

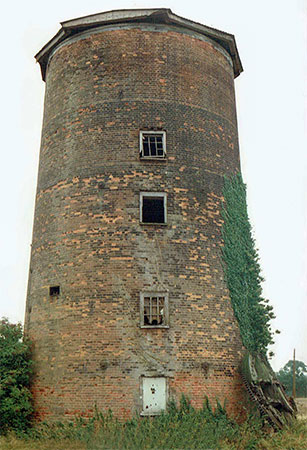

Old Buckenham towermill was built of red brick in 1818 and has the date cast into a wall washer on the tie bar above the north door. The 42 foot high tower only had a 3 foot 6 inch batter, being 26 feet 6 inches at ground level and 23 feet at the curb with 2 foot thick walls, all of which made it the widest towermill in the country. It is believed that the mill was originally built with 8 common sails (as was the towermill at Victoria Road, Diss) that were replaced by 4 patent sails after serious storm damage in 1879. The overall height of the mill to the top of the cap was 54 ft. 6 ins.

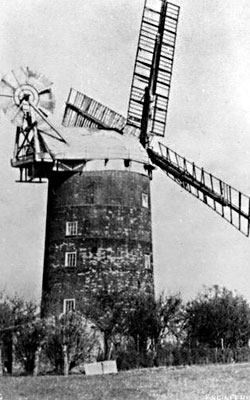

The mill had a boat shaped cap with a rearward extension, which at 24 feet, was the largest in diameter of any known mill and it extended well beyond the 5 storey tower. This enormous cap was internally 14 feet high, 23 feet long, 21 feet wide and had 32 wheels including 5 truck wheels and 17 centring wheels. Due to its mass, winding was by both spur and worm drives to a live curb set on wooden ring. The cap had a petticoat, gallery, iron railings and a six bladed, 12 foot diameter fan. There was a hatch above the brake wheel. Despite iron bands being set around the tower, it became distorted, throwing the curb out of level.

Ground floor:
Originally two doors but the southern one was later blocked up
Two wndows

First floor:
Great spur wheel
5 stone nuts & one other pinion
2 pairs of governors, one with 2 steelyards regulating 4 pairs of stones
Upright shaft

Second floor:
5 pairs of French burr stones

The two pairs of 10 feet wide double shuttered sails had a span of aproximately 75 feet and were struck by a lever. Each sail had 10 bays of 3 wooden backed shutters with a wire frame and canvas covers. The sails were set on five rollers under the windshaft’s neck and powered 5 pairs of underdriven French burr stones, each pair having its own governor and a dresser.

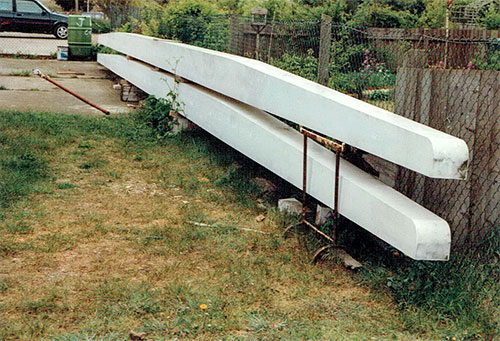

The stocks were 60ft long

The cap frame was 30ft. 6ins. by 12ft

The 15 foot long, cast iron windshaft tapered down from 11" diameter, weighted 2½ tons and was cast by millwrights Smithdale of Norwich c.1872-1883 and bore the inscription:
T. SMITHDALE & SON, ENGINEERS, NORWICH

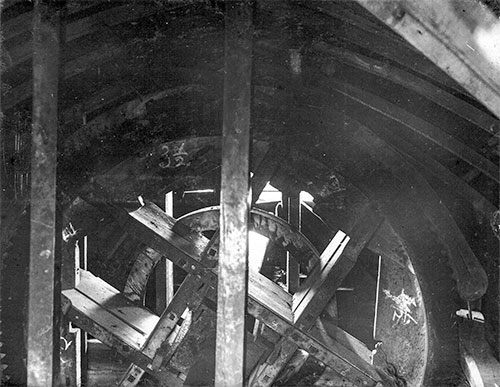

The 10 foot diameter brakewheel was of a clasp arm construction, having an iron cog ring of 120 cogs cast in 5 segments.

The iron upright shaft was 25 feet high and 8 inches in diameter.

The 10ft diameter head wheel was made of wood and consisted of 2 second hand wheels bolted together with a cast iron ring of cogs bolted to it. Th emouinting was 24ins x 24ins x 24ins. The wheel had approx 120 x 3 ins pitch cogs that were 4½ ins wide x 2½ ins deep and set in segments over a wooden toothed wheel with 2 sets of cogs cut off. There were about 88 to the rear and and about 88 forward of which 6 were numbered I, II, III, IIII, IIIII & IIIIII inone 2ft centre segment between the clasp arms. These were possibly designed as "knock out" cogs to put the wheels out of gear on a head wheel driving directly through the stone nuts without the wallower or great spur wheel. The clasp arms were in two portions that did not exactly match - the rear portion was 9½ ins wide and the rear portion 13½ ins wide and made up from odd pieces. This was possible a compass arm wheel. A wooden ring acted as a drive for the sack hoist.

The 5 feet 3 inches diameter wallower had an 8 sided hub and was probably the largest in the county, having 72 teeth with a 3 inch pitch - as opposed to the 26 tooth version at Little Cressingham towermill. A wooden ring was bolted under the wallower to provide a friction drive for the sack hoist.

The underdriven great spur wheel was 13 feet in diameter and made of 12 cast iron segments that were assembled on site and attached to the upright shaft with cast iron angles on flanges. On occasions, an auxiliary drive was applied directly to the wheel.

The 6 cast iron stone nuts were 20 inches in diameter and each had 24 wooden cogs. The step bearings were carried on a cast iron frame resting on a timber frame. The stone nuts that drove the five pairs of French burr stones were raised by a horizontal lever with a forked end the remaining one powered a flour dresser via a rack and pinion.

A governor with 8 inch iron balls controlled 4 pairs of stones and a smaller version controlled the remaining stone, both being driven via a spindle from the upright shaft.

When building began the best available materials were used but as construction progressed the quality declined as the owner’s finances became stretched. A large granary was built next to the mill in 1856 that incorporated a steam mill with four pairs of stones driven by a Gilbert 12 horse power engine that was later replaced by an oil engine.

The mill was built for John Burlingham who was also the miller at the nearby Mill Farm postmill that became the site of the Methodist Chapel in 1871. John Burlingham's parents were millers and farmers in Shropham, where they also had a weaving, grocery and drapery shop or shops. John Burlingham was an apprentice at a mill in Sapiston, Suffolk. In 1805 he was miller at Old_Buckenham_postmill and in that year was made bankrupt. The 1811 census also lists him at the postmill. In February 1813 he succeeded in paying his creditors. In 1825, James Colman became engaged to John Burlingham's eldest daughter, Mary, born 24th October 1805..

To be Let
A TOWER WIND-MILL most desirably situated at East_Harling in Norfolk & exceedingly well winded, in which are two pair of stones, flour mill & going gears complete, with five acres of Land adjoining & suitable buildings thereon.
Apply personally (or by letter if post paid) to Mr. John Burlingham, Old Buckenham, Norfolk.
Norfolk Chronicle - 1st October 1825

The Burlingham family also owned East_Harling_towermill. Land Tax records show that Thomas Burlingham was the owner from at least 1820 - 1832 and the Tithe Award of 1846 gives John Burlingham as the owner.

Strong wind November 24th 1836.
Many mills hurt. Bullingham’s.
Diary of Thomas King of Thelnetham 1804-1838

Burlingham’s lost two sails & otherwise damaged.
Suffolk Chronicle - 26th November 1836

The bread ovens were often used by people from the village when their own ovens were either unusable or too small.

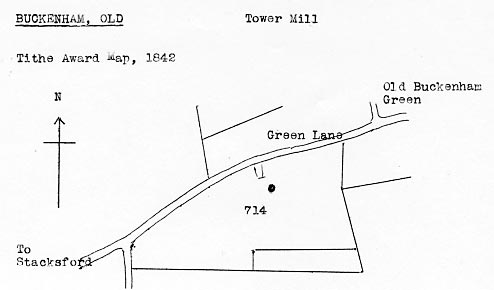

Tithe Award 1843
Map, J. Easton, Attleburgh, 1842
Owner: John Burlingham, Junior
Occupier: do

In 1823 Jeremiah Colman (1771-1851) took his nephew James Colman (1801-1854) into partnership trading as J. & J. Colman. The company became mustard manufacturers at Stoke Holy Cross. James Colman married Mary Burlingham, daughter of John Burlingham in 1826 and they had a son, J. J. Colman, born on 14th June 1830.

On 17th May 1862, J. & J. Colman bought Old Buckenham towermill from John & George Burlingham and their mortgagees Harvey & Hudson..

The 1851 census lists several members of the Burlingham family as being in the milling trade under the company name of J. Burlingham & Sons.

At Church Green:
John Burlingham (71) b.Larling, widower, Retired Corn Merchant;
Elizabeth Johnson (68) b. Shropham,sister, Landed Proprietor;
Harriet Cann (25) cook servant; Rebecca Gardiner (21) house servant

At Manor House, Church Green:
John Burlingham jnr (34) b.Old Buckingham, Corn, Seed Merchant & Miller;
Maria Burlingham (38) b.Westbourn, Suffolk, wife;
Martha E. Monnshire (40) b.Portsea, sister in law;
Mary Ann Monnshire (36) b. Portsea, sister in law.
Tabitha Hewitt Simmons (20) house servant;  Emily Newman (21)  general servant

At Church Green:
George Burlingham (33) b.Old Buckenham, Corn & Seed Merchant & Miller
Elizabeth Burlingham (29) b.Besthorpe
Lucy Burlingham (3) b.Old Buckenham; John Burlingham (2) b.Old Buckenham;
George Burlingham (1) b.Old Buckenham; Elizabeth. Peck, cook servant;
Charlotte Loveday (21) servant nurse; Emily Steward (20) house servant

Richard Curtis (25) b.Caldecote, clerk to corn merchant & miller
Etheridge Curtis (23) b.Caldecote, clerk to corn merchant & miller
Arthur Curtis (16) b.Rudham, clerk to corn merchant & miller

Gravestones in Old Buckenham churchyard:
John Burlingham - born 1774 and died 11th September 1853 aged 79
Elizabeth Burlingham (wife) died 25th June 1846 aged 70
John Burlingham (son) born 1816 and died in London on 8th December 1875 aged 59
Charles Burlingham (youngest son) died 20th August 1853 aged 36

John Burlingham - His parents lived at Shropham where they had a farm, a mill, a weaver's shop, a grocery and a drapery business. John apprenticed at a mill at Sapiston.
Jeremiah James Colman - Helen C. Colman 1905

Norfolk News - 17th March 1860

To Millers & Merchants

Old Buckenham Mills near Attleboro’

Wm. Spelman & Sons have received instructions To sell by Auction on Monday march 12, 1860

The following Effects at Old Buckenham Mills in the occupation of Messrs. J. & G. Burlingham in consequence of the Winding up of the business at Old Buckenham.

Horses, Waggons, Carts, Harness, Carriages, Sacks & Bags, Beams, Weights etc …

The Sale will commence at Twelve o’clock at the Hall Mill.

Norfolk Chronicle & Norfolk News - 3rd & 10th March 1860

Old Buckenham, Norfolk

Messrs. Butcher are instructed to Sell by Auction at the New Inn, Attleborough on Thursday 14 June 1860 at 4 o’c in lots the undermentioned Valuable Property …

Also a Brick TOWER WINDMILL with five floors & patent sails driving five pairs of stones.

Also a WINDMILL driving two pairs of stones.

Etc.

The above will be sold subject to charges thereon amounting to £11,000 upon which interest is paid at the rate of 3½ per cent per annum.

Apply to Mr. Tillett, Solr. Norwich or the Auctioneers, Norwich & at their offices 37 Bedford Row, London W.C.

Preliminary advertisement 28 April 1860

Norfolk Chronicle & Norfolk News - 5th, 12th & 19th May 1860

Old Buckenham, Norfolk

Messrs. Butcher are instructed to Sell by Auction at the New Inn, Attleborough on Thursday 14 June 1860 at 4 o’c in lots the undermentioned Valuable Property …

Also a Brick TOWER WINDMILL with five floors & patent sails driving five pairs of stones.

Also a WINDMILL driving two pairs of stones.

Etc.

The above will be sold subject to charges thereon amounting to £11,000 upon which interest is paid at the rate of 3 ½ per cent per annum.

Apply to Mr. Tillett, Solr. Norwich or the Auctioneers, Norwich & at their offices 37 Bedford Row, London W.C.

Preliminary advertisement 28 April 1860

Norfolk Chronicle & Norfolk News - 5th, 12th & 19th May 1860

OLD BUCKENHAM, Norfolk

Messrs. BUTCHER are instructed to Sell by Auction at the New Inn, Attleborough on Thursday 14 June 1860 at 4 o’clock in lots the undermentioned Valuable Property

Also the Powerful BRICK TOWER WINDMILL with five floors and patent sails driving five pairs of stones.
Also a piece of Arable Land adjacent to the above mentioned mills and cottages containing with the sites of the said mills and cottages 9a. 3r. 2p. Also a WINDMILL driving two pairs of stones with small granary late in the occupation of Messrs. John Burlingham and Sons.
Also Cottage, small granary and garden of 0a. 2r. 30p. occupied by – Lawrence.
The above will be sold subject to charges thereon amounting to £11,000 upon £2000 of which interest is at £5% and on £9000 at 3¼% per annum.A most extensive business has been long established and conducted upon this property by Messrs. Burlingham and Sons.
Apply to Mr. Tillett, Solicitor, Norwich or the Auctioneers, Norwich and at their offices,
37 Bedford Row, London, W.C.
Norfolk Chronicle - 9th June 1860

Situations Vacant

WANTED, an experienced STONEMAN. A good Character will be required.

Norfolk News - 25th May 1872

To Let in Norfolk, a powerful WINDMILL driving five pairs of Stones. Steam Mill attached if desired. A large trade now in full operation. Dwelling house, Premises & 50 acres of Arable Land. Rent moderate. Further particulars of Messrs. W. H. Tillett & Co., Solrs. Norwich.
Norfolk Chronicle - 21st July 1877

To be Let with early Possession

TWO TOWER WINDMILLS at Old Buckenham, Norfolk & a large Steam Flour Mill, with about 18½ Acres of Land adjacent. Also a capital Family Residence & Cottage, with garden & grounds comprising 5¼ Acres at Old Buckenham, now in the occupation of Mr. George Burlingham.

Also three Green rights.

For rent & particulars apply to Mr. George Burlingham at Old Buckenham or Mr. Tillett, Solicitor, Norwich.

Norfolk News - 8th & 15th September 1860
The other mill mentioned above was actually Mill Farm postmill

Old Buckenham

To Millers & Builders

Steam Engine, French Burr Stones, etc …

Forming the “Hall Steam Mill” to be taken down & removed by the purchasers.

Spelmans sale Thursday 6 September 1860.

Norfolk Chronicle - 25th August & 1st September 1860

Old Buckenham Mills, near Attleborough

11 powerful & active Van Horses, 3 Cobs, 4 excellent Cows, 4 Millers’ Vans, 4 Millers Carts, Dog Cart, Car, Basket Car, Sulkey, Agricultural Implements, Harness, Furniture etc.

Salter & Simpson are favoured with instructions from Messrs. J. & J. Colman to Sell by Auction in consequence of the Mills being let.

Norfolk Chronicle - 1st, 15th & 22nd September 1877

Old Buckenham Steam & Wind Mills

William Beales wishes to call the attention of farmers, horse-keepers & graziers to the above mills & to inform them that he, through having steam power is in a position to execute all orders & keep consumers well supplied with meal at the shortest notice. Flour, meal, supers, barley, oats, maize, beans, peas, bran etc. always on hand at prices which will bear comparison with any house in the trade.

New Buckenham Almanack - 1890

Michaelmas 1901

Thos. Wm. Gaze & Son Michaelmas Sales

The Mills, old Buckenham

On Tuesday October 1

Trade Carriages, FARMING STOCK & Effects including 8 h.p. Portable steam Engine & pair of French Burr Stones, by direction of Mr. W.E. Beales.

Lynn Advertiser - 13th September 1901

Thos. Smithdale & Son
Engineers, Millwrights, Contractors
Acle, Norfolk 30/6/1904
This agreement witnesseth that I Frederick William Gooderham, Miller of Old Buckenham Norfolk do agree to pay to Messrs. Thos. Smithdale & Son of Acle Norfolk the sum of one hundred pounds £100 for work to be done by them to my mill as agreed to pay the amount as follows;
£25 at once
£25 when sails are ready for delivery
£50 6 months after the work is complete
Signed this first day of July 1904
Name in full: F. W. Gooderham
Witness to the above – signature Horatio S. Loveday – occupation Engine Owner Old Buckenham.

Frederick William Gooderham, miller, witness at inquest on his brother Herbert Reames Gooderham, aged 28, a miller’s carter.
Norfolk Chronicle - 14th March 1908

… Messrs. Colman transferred the business of flour making to their Norwich mills, dismantled the boilers & let the windmill & premises to a Mr. William Beales who only made a very small amount of flour in the windmill. Mr. Beales lived at that time in the farm at the South side of the Green known as Mill Farm …
Some Notes on Old Buckenham - edited by H.E. Read, 1944 - 1946

William Goodrum, had to have an arm amputated in 1921 after being injured by the machinery.

Death of last miller, William John Goodrum, son of Jonathan Goodrum. Arm amputated in 1921 when injured through being caught in driving belt.

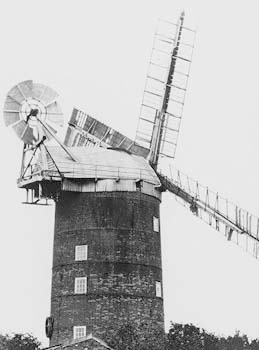

Milling ended 1926 when fantail broke down.
Eastern Daily Press - 1st August 1970

The property was described as 'Mills, Houses, Cottages and Farms'. Parts of this property were sold in 1867, 1871, 1872, an d1900, the final sale taking place at Michaelmas 1909.
Letter to Harry Apling from R. H. Butcher, Public Relations Officer, Reckitt & Colman Products Ltd., Carrow, Norwich. - 20th August 1973

Pig’s Ear puts Farmer through the Mill

Farmer Mr. Dennis Burton was surprised to read that the historic Old Buckenham Mill on his farm was to be turned into a youth field centre.
For Mr Burton, of Mill Farm, Old Buckenham, knew nothing about any scheme and he did not want a field centre on his farm.
When his neighbours also read about the £20,400 scheme they were none to pleased, either.
“People are getting a bit hot under the collar thinking it’s something to do with me,” Mr Burton said yesterday. “The first I saw of it was in the paper, and then when I went down to the local and they told me I was in the Sunday Express.”
The information, which started the furore at Old Buckenham came from a Manpower Services Commission Press release. The Commission said it was going to give Old Buckenham Mill, an early 19 th century windmill a new lease of life. Two craftsmen and eight unemployed youngsters would put in lavatories, showers and partitions so the mill could be used as a centre for field studies, painting and other activities.
The mystery was finally cleared up by Norfolk County Council Youth and Community officer, Mr Cyril Grant, who is sponsoring the scheme with the commission. “The mill we are converting is at Buckenham Tofts, near Mundford, on the edge of the battle area,” he said.
The brick and flint watermill stands beside the River Wissey, next to a campsite already used the county council youth service.
With the £20,400 grant from the commission, plus £5,000 from the West Norfolk Jubilee Trust and some money from the county education budget, the empty building will become a much needed field centre for the area.
Mr. Grant was certain Norfolk County Council had no designs on Mr. Burtons mill and neither had the commission.
Finally the gaffe was traced to the Central Office of Information in Cambridge, where the existence of four Norfolk Buckenhams had not been suspected. “In the research for the Press release some of the wires got crossed; that’s clearly what happened.” said the regional information officer, Mr Ian McKellar. ”I hope it hasn’t worried him too much. I am sorry if he has been upset by it. It does seem to be a pigs ear we have made.” he admitted. “Let’s face it, with four Buckenhams, we had a 25% chance of being right. We hope it won’t be a millstone round our necks.”
Eastern Daily Press - 24th January 1979

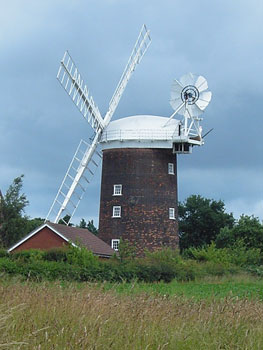

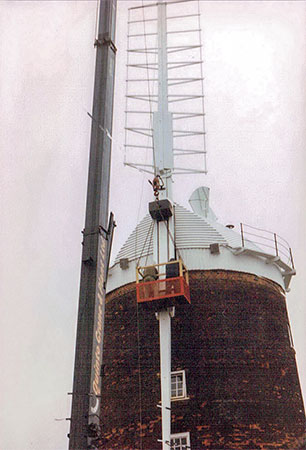

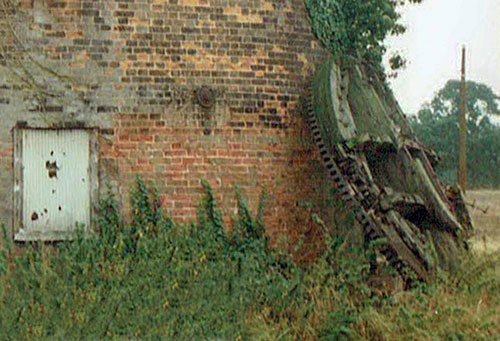

During renovation a new clasp-arm brake wheel was constructed to replace the rotten original, which apparently came from one of the several nearby postmills. Unfortunately the stone furniture had disappeared and the runner stones had been broken up.

In 1976, Mrs. Grace Emma Hilton of Old Buckenham, widow of Clifton William Hilton, was the owner of the mill and mother in law of Dennis Burton who was living at Mill Farm.

Unallocated millers from old Buckenham:
Poll Book 1802: John Barton
1811, 1821, 1830, White's 1836: John Lock
1811: Robert Brown
1811: Shadrack Lane
1821: Isaac Arms (1)
1821: Isaac Arms (2)

1818: Mill built for John Burlingham snr

Parish census 1821: John Burlingham, miller

Bryant's map 1826: Windmill

White's 1836: J. Burlingham, corn miller & corn merchant

24th November 1836: Mill lost 2 sails and damaged during a storm

Robson's 1839: John Burlingham snr, miller & corn merchant

White's 1845: J. Burlingham & Sons, millers

White's 1854: J. Burlingham & Sons, corn millers & merchants

1855: Steam mill for flour & seed built to drive 4 pairs of stones - known as Hall Steam Mill

1856: Granary built adjacent and bakery added later

10th March 1860: Business partnership between John & George Burlingham dissolved

March 1860: Business effects of J. & G. Burlingham advertised for sale by auction

Thursday 14 June 1860: Mill sold at auction along with Mill Farm postmill

August 1860: Hall Steam Mill advertised for sale and removal

September 1860: Mill advertised to be let

White's 1864: J. & J. Colman, farmers & milers & c. Henry Mower, manager

17th May 1862: Mill sold to J. & J. Colman by John & George Burlingham and morgagees Harvey & Hudson

1872: J. & J. Colman, millers

July 1877: Mill advertised to be let

Septemer 1877: Business efects of J. & J. Colman advertised for sale by auction due to the mill being let

Kelly's 1879: William Beales, miller & farmer

1879: Mill badly damaged in a storm

1879: New windshft cast iron fitted and 8 common sails replaced by 4 patent sails

White's 1883: William Beales, miller, farmer, corn & coal merchant

1890: William Beales, miller

Kelly's 1896: William Frederick Beales, miller (wind & steam), farmer, corn & coal merchant, Mill Farm

Kelly's 1900: William Frederick Beales, miller (wind & steam), farmer, corn & coal merchant, Mill Farm

April 1900: J. & J. Colman sold the mill to Prince Frederick Duleep Singh

September 1901: Business effects of William Beales advertised for sale by auction

Kelly's 1904: Frederick William Gooderham, miller (wind & steam)

July 1904: New sails ordered from Thomas Smithdale & Son of Acle

1908: Herbert Reames Gooderham, miller's carter died - brother of Frederick William Gooderham, miller

Kelly's 1912: John Gooderham, miller, corn, flour & offal merchant (wind & oil engine)

Kelly's 1916: John Gooderham, miller (wind & oil engine)

1921: William John Goodrum had an arm amputated after it was caught in a drive belt

Kelly's 1922: John Gooderham, miller (wind & oil engine)

1922: Billy Gooderham bought mill

Kelly's 1925: John D. Goodrum & Son, millers (wind & oil engine)

1926: Mill ceased working after losing the fantail

Kelly's 1929: John D. Goodrum & Son, millers (wind & oil engine)

Kelly's 1933: John D. Goodrum & Son, millers (oil engine)

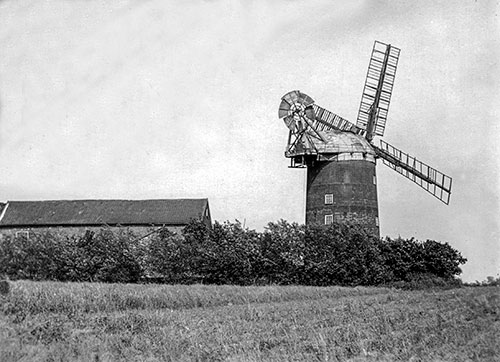

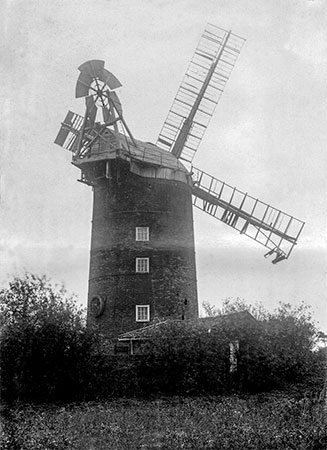

Kelly's 1937: John D. Goodrum & Son, millers (oil engine)

1949: Mill derelict

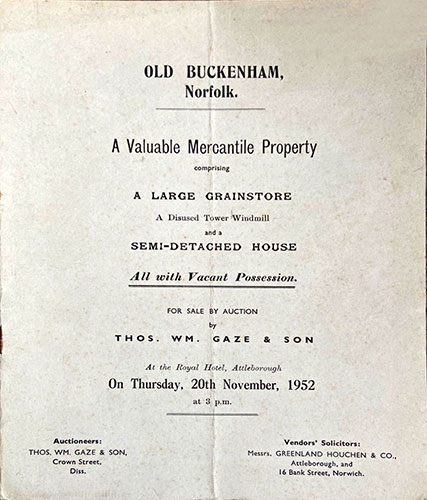

20th November 1952: Mill & grain stoer boght by by Clifton William Hilton at auction for £500

28th April 1969: One of the sails strck by lighning and set on fire

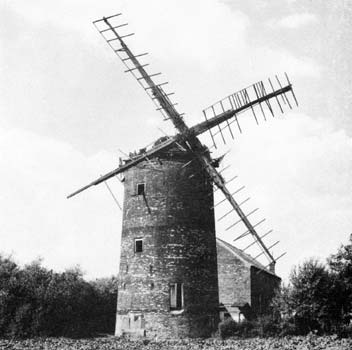

1970: Cap gone and mill lying derelict

1970: William John Goodrum died - last miller and son of Jonathan Goodrum

20th October 1976: Cap frame & sails removed by millwright John Lawn who installed a temporary roof

1976: Mrs. Grace Emma Hilton of Old Buckenham, owner and widow of Clifton William Hilton

c.1982: Granary converted to dwellings

1984: All internal machinery from wallower downwards still in situ under a temporary roof

January 1989: Mill taken over by Norfolk Windmills Trust

1992: Restoration work started by millwright John Lawn

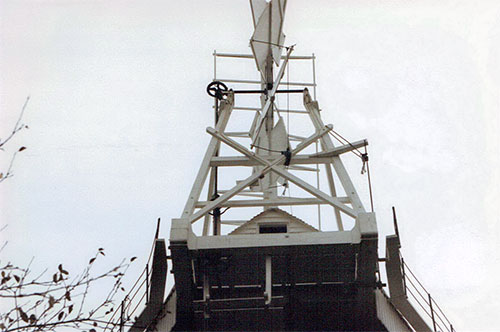

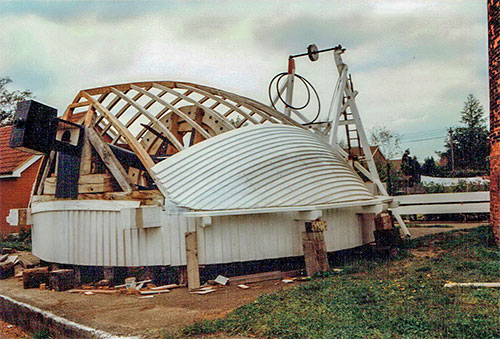

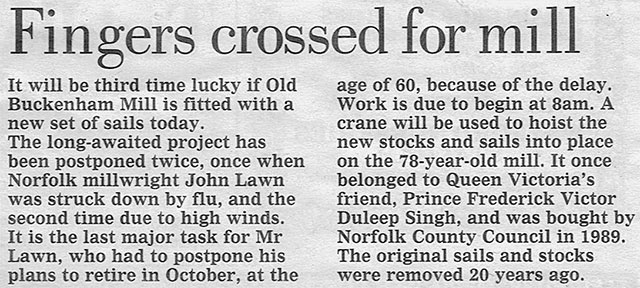

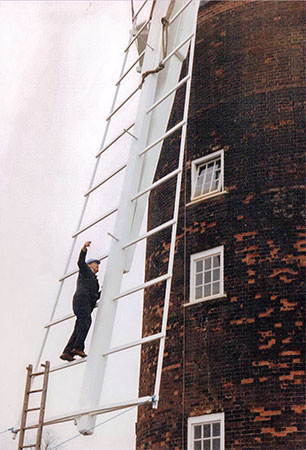

1996: New cap and sails fitted

1997: Mill opened to public on the 2nd Sunday of every month in the afternoon from April to September

2000: Mill in good condition having been restored

Copyright © Jonathan Neville 2005
