Sea Palling Lambridge
drainage mill
Waxham New Cut

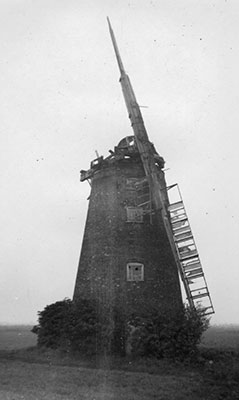

1950
1950

Lambridge drainage mill stood just to the southwest of Lam Bridge on Waxham Marshes along with an adjacent Mill Cottage. The 4 storey tapered tower had a Norfolk boat shaped cap with four patent sails that powered an internal scoopwheel to drain the Brograve levels into Waxham New Cut. A door was set in the northeastern side with 3 windows above it. A semi-circular opening was built into opposite sides of the tower to channel the water. The nearby Brograve_Mill also drains into the same Cut. The building is now Grade ll listed.

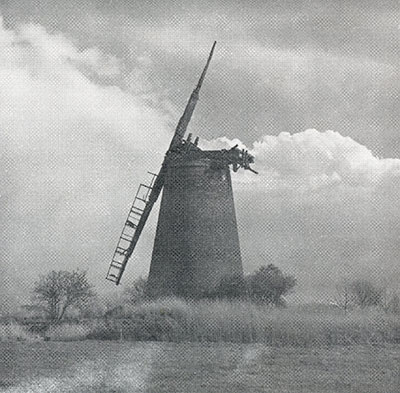

10th April 1972
10th April 1972
+
Derelict red brick tower without cap. One sail stock with one fragmentary patent sail, windshaft, remains of brakewheel, other gear inside; medium size. In field by dyke from New Cut. House and sheds nearby. Private.
Arthur C. Smith - 10th April 1972

Converted, but of derelict mill appearance. Red brick tower of medium size with cap frame base (but no cap), one stock, windshaft and other machinery. In field by dyke from New Cut. House and sheds nearby. Private. It had internal scoopwheel.
Arthur C. Smith - 21st June 1988

Curb track, fan cradle, worm gear, drive intact; fragments of two stocks and sails. Internal scoop wheel missing, pit in filled windshaft, brakewheel, crownwheel, upright shaft, great spur wheel intact.
E. Rose - 21st June 1994

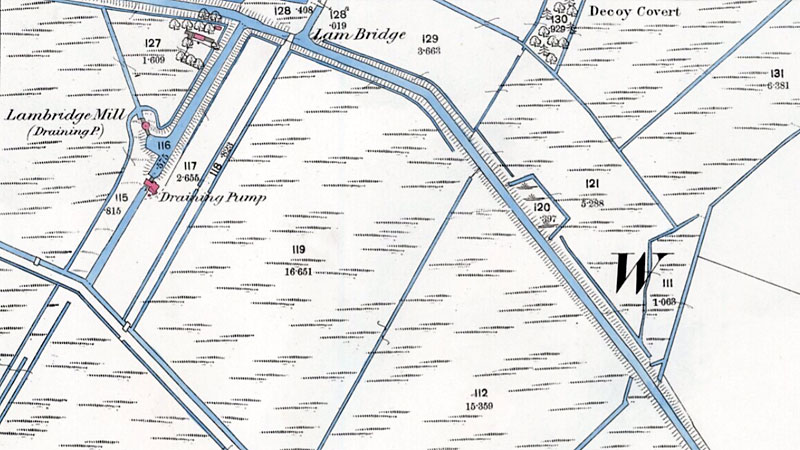

O. S. Map 1884
O. S. Map 1884
Courtesy of NLS map images

c.1865: Mill built

O.S. map 1884: Lambridge Mill (Draining P.)

c.1937: Mill badly damaged, presumably in a gale

1950: Mill tower with no cap and two opposite stocks with sail and shutter remnants on one

1972: Mill tower with no cap and two opposite stocks with sail remnants on one

1994: Cap gone but parts of 2 stocks and sails still in situ along with most internal machinery

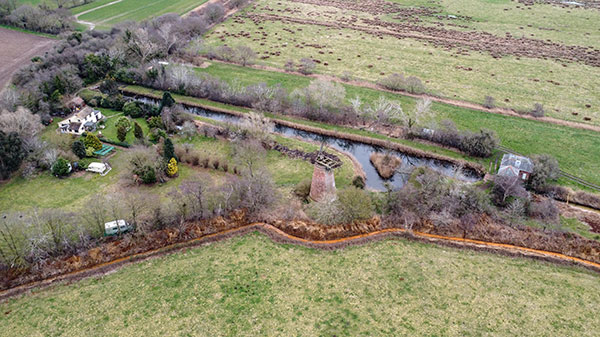

2012: Tower with parts of cap frame, 1 stock and part of a sail

If you have any memories, anecdotes or photos please let us know and we may be able to use them to update the site. By all means telephone 01263 713658 or

Nat Grid Ref TG 43182522
